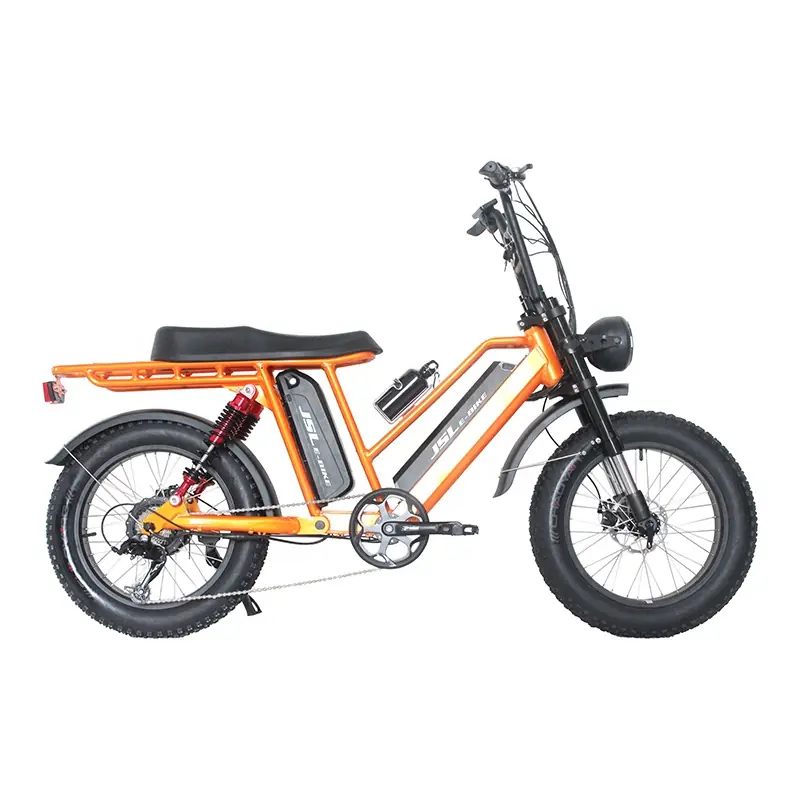

JSL039FA 20" fat tire e-bike
Double the Suspension. Double the Range. Built for More.
The JSL039FA offering extended range and excellent shock absorption on rugged terrain or urban roads. Whether for delivery work, leisure travel, or daily commuting, the JSL039FA delivers dependable performance and enhanced comfort.
Key Features：
500W Rear Motor
Dual 48V 13Ah Lithium Battery
Dual Rear Suspension + Suspension Fork
Shimano 7-Speed Gear System
20″ × 4.0″ Fat Tires
Max Speed: 40km/h
Why Choose Us
Full In-House Manufacturing: 70,000㎡ factory integrating frame welding, painting, and full bike assembly for strict quality control and faster lead times.
Certified for Global Markets: CE, EN15194, ISO, TÜV certified — fully compliant for Europe and beyond.
25+ Years of Export Experience: Trusted by B2B partners across Europe, North America, and Australia.
Flexible Customization: Tailor frame colors, logos, battery & motor specs, accessories to match your market needs
Product Description
Motor – 500W Rear Hub Motor
Quiet, efficient motor that provides consistent power and good torque for urban and light off-road use.
Battery – Dual 48V13Ah Lithium
Combined capacity of 1248Wh ensures high mileage. One battery integrated under the seat tube, the other mounted on the rear rack.

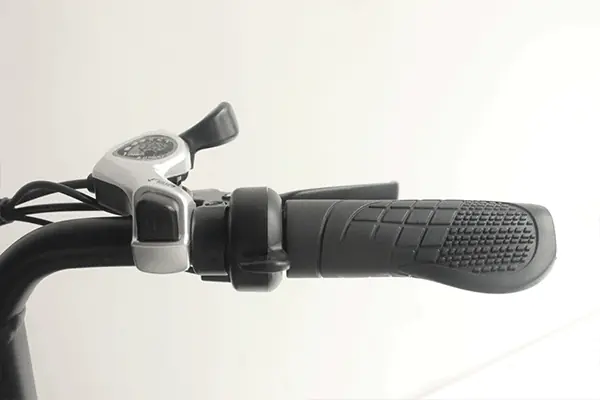

Gears – Shimano 7-Speed
Entry-level gear system for basic climbing and efficient cruising.

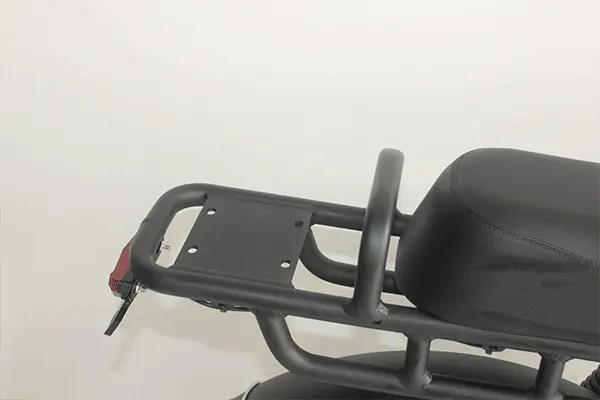

Cargo – Rear Cargo Rack
Equipped with a durable metal rear rack, ideal for carrying bags, boxes, or delivery cargo. Stable, secure, and ready for daily utility use.

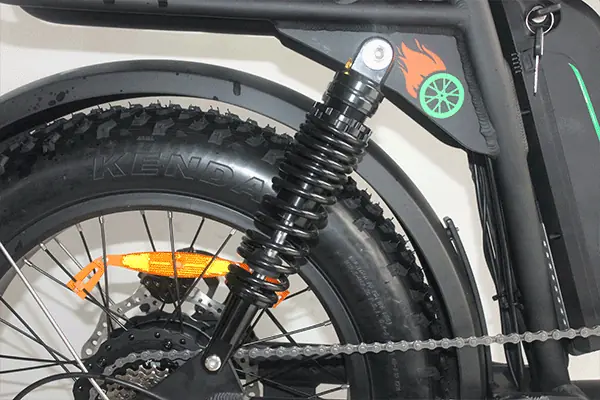

Frame – Dual Rear Suspensions
Reinforced rear triangle and dual shocks enhance stability and riding comfort over tough terrain.

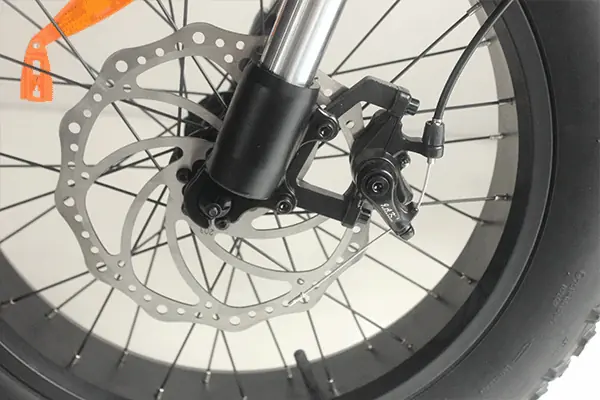

Brakes – Mechanical Disc Brakes
Stable braking performance even in wet conditions or quick stops.

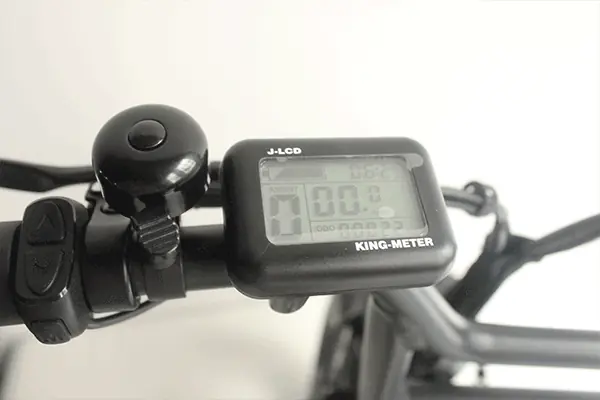

Display – 5/9 PAS LCD Display
Monitors riding data including speed, PAS level, battery level, and mileage.
Throttle – Thumb/Half/Full-Twist
Adaptable to user preferences or local regulations.

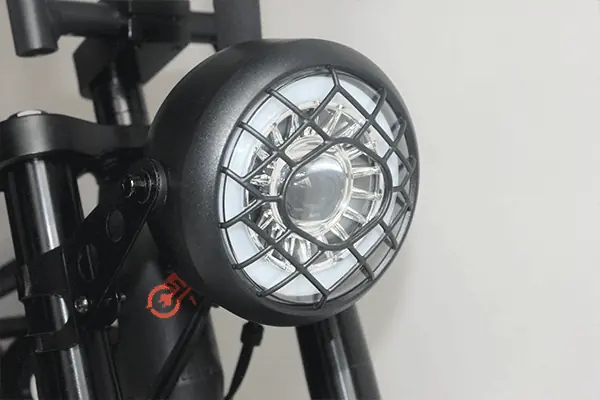

Light – Front & Rear LED Lights
Pre-installed lights for night riding visibility and traffic safety.
Product Parameters
Frame
20" Al Alloy(with Dual Rear Suspensions)
Motor
500W Rear Motor
Battery
Dual 48V13Ah Lithium Batteries Chinese Cells
Throttle
Optional Thumb/Full-twist/Half-twist Throttle
Display
5/9PAS LCD Display
Light
Front/Rear LEDLight
Tires
20"*4.0 Fat Tires
Rims
Al Alloy Double Wall Rims
Front Fork
Al Alloy with Suspension
Brake
Front/Rear Disk Brake
Speed Gears
Shimano 7 Gears
Rack/Mudguard
Metal Rack/Plastic Mudguard
Max Speed
40km/h
N.W./G.W.
43kg/48kg
FAQ
Q1: What’s the total riding range?
A: With dual 48V13Ah batteries, you can ride up to 90–120km under pedal assist mode.
Q2: Can both batteries be used at the same time?
A: Yes. They can be wired for extended range or swapped individually depending on setup.
Q3: Is the frame foldable?
A: This model is non-folding, built for strength and longer range capacity.
Q4: What certifications do your bikes have?
A: Our bikes meet CE and EN15194 standards for the EU market, and can be adjusted to comply with UL or other regional requirements.
Q5: How is the bike packaged for shipping?
A: Each bike is packed in a reinforced carton (approx. 1502694cm), net weight 28kg, gross 33kg, optimized for container loading.
Q6: What is your typical lead time for bulk orders?
A: Generally 25–35 days after confirming the order and receiving the deposit. Exact time depends on customization requirements and order quantity.
Q7: What is your MOQ for OEM branding?
A: For custom logo, color, and packaging, our standard MOQ is 20 units. We also support sample orders to test quality.
Q8: Can you provide spare parts or after-sales support?
A: Yes, we offer a full range of spare parts and technical support. Standard spare kits are available with bulk shipments.
Q9: Do you offer warranty?
A: Our eBikes come with a 12-month warranty covering motor, battery, and controller, plus lifetime technical support.
Q10: Can you help design my private label packaging?
A: Absolutely. We provide packaging design assistance, including custom cartons, manuals, and stickers to match your brand.
