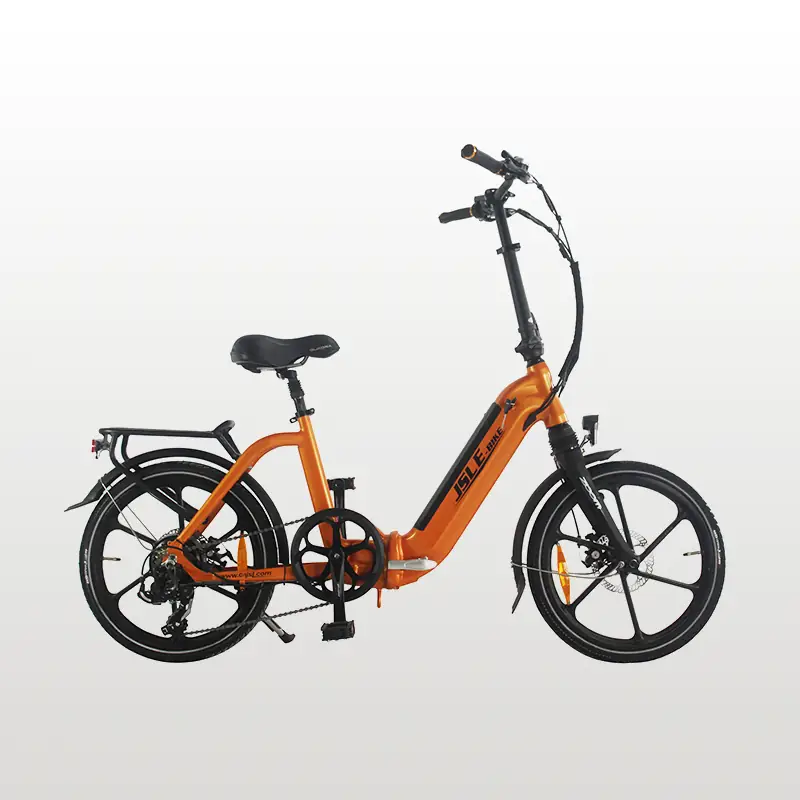

JSL039F – 250W Integrated Wheel Folding City E-Bike
City Ready. Space Saving. Smooth Ride.
The JSL039F is a lightweight and compact city electric bike
Key Features：
250W Rear Integrated Motor
36V10Ah Lithium Battery
Mag Wheel Design
Shimano 6-Speed Gears System
City Tires + Mid Suspension
Max Speed: 25–32 km/h
Why Choose Us
Full In-House Manufacturing: 70,000㎡ factory integrating frame welding, painting, and full bike assembly for strict quality control and faster lead times.
Certified for Global Markets: CE, EN15194, ISO, TÜV certified — fully compliant for Europe and beyond.
25+ Years of Export Experience: Trusted by B2B partners across Europe, North America, and Australia.
Flexible Customization: Tailor frame colors, logos, battery & motor specs, accessories to match your market needs
Product Description

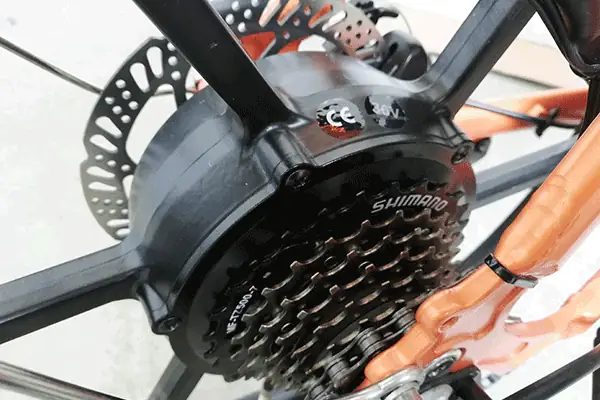

Motor – 250W Rear Integrated Hub Motor
Built into the rear wheel for a quiet and streamlined appearance.

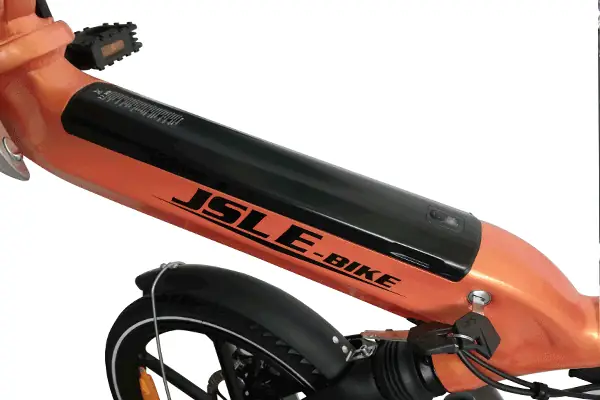

Battery – 36V10Ah Lithium Battery
Removable design for flexible charging; great for daily commuting.
Gears – Shimano 6-Speed
Reliable gearset for various speeds and inclines.

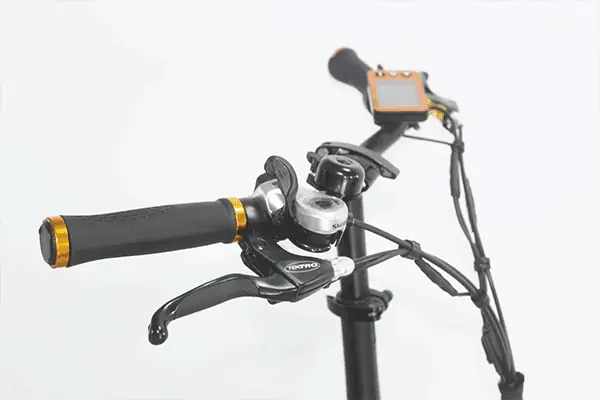

Handlebar - Throttle/Display
5/9 PAS LCD Display and Thumb / Full-Twist / Half-Twist (Optional)

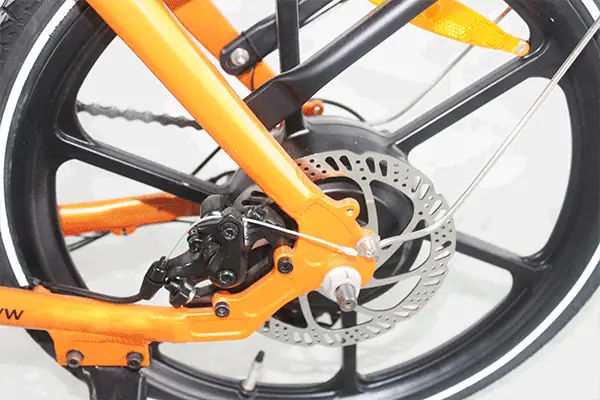

Brakes – Front & Rear Disc Brakes
Responsive and consistent braking performance.

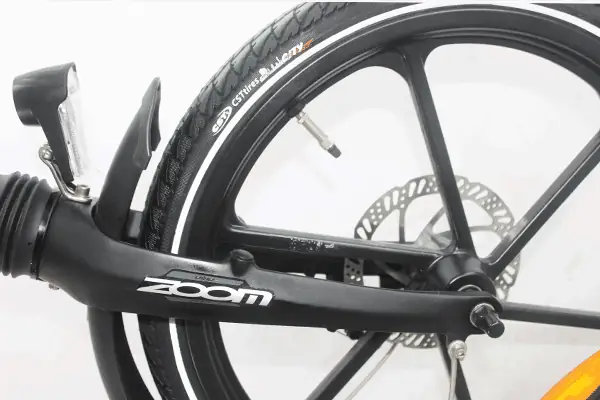

Tires – 20" × 2.125 City Tires
Smooth and efficient tires tailored for paved roads.
Product Parameters
Frame
20" Al Alloy Folding
Motor
250W Rear Al Alloy Integrated Wheel Motor
Battery
36V10Ah Lithium Battery Chinese Cells
Throttle
Optional Thumb/Full-twist/Half-twist Throttle
Display
5/9PAS LCD Display
Light
Front/Rear LEDLight
Tires
20"*2.125 City Tires
Rims
20" Al Alloy Integrated Wheel
Front Fork
Al Alloy with Mid Suspension
Brake
Front/Rear Disk Brake
Speed Gears
Shimano 6 Gears
Rack/Mudguard
Metal Rack/Plastic Mudguard
Max Speed
25-32km/h
N.W./G.W.
25kgs/30kgs
FAQ
Q1: How compact is the bike when folded?
A: It folds down easily and fits in most car trunks, apartments, or elevators.
Q2: What’s the battery charging time?
A: Typically 4–6 hours for a full charge depending on usage and charger.
Q3: Can I switch between throttle and PAS modes?
A: Yes, both modes can be used separately or together as preferred.
Q4: Is this model EU-compliant?
A: Yes, the 250W motor and 25km/h speed setting are compliant in most EU countries.
Q5: How is the bike packaged for shipping?
A: Each bike is packed in a reinforced carton (approx. 1502694cm), net weight 28kg, gross 33kg, optimized for container loading.
Q6: What is your typical lead time for bulk orders?
A: Generally 25–35 days after confirming the order and receiving the deposit. Exact time depends on customization requirements and order quantity.
Q7: What is your MOQ for OEM branding?
A: For custom logo, color, and packaging, our standard MOQ is 20 units. We also support sample orders to test quality.
Q8: Can you provide spare parts or after-sales support?
A: Yes, we offer a full range of spare parts and technical support. Standard spare kits are available with bulk shipments.
Q9: Do you offer warranty?
A: Our eBikes come with a 12-month warranty covering motor, battery, and controller, plus lifetime technical support.
Q10: Can you help design my private label packaging?
A: Absolutely. We provide packaging design assistance, including custom cartons, manuals, and stickers to match your brand.
