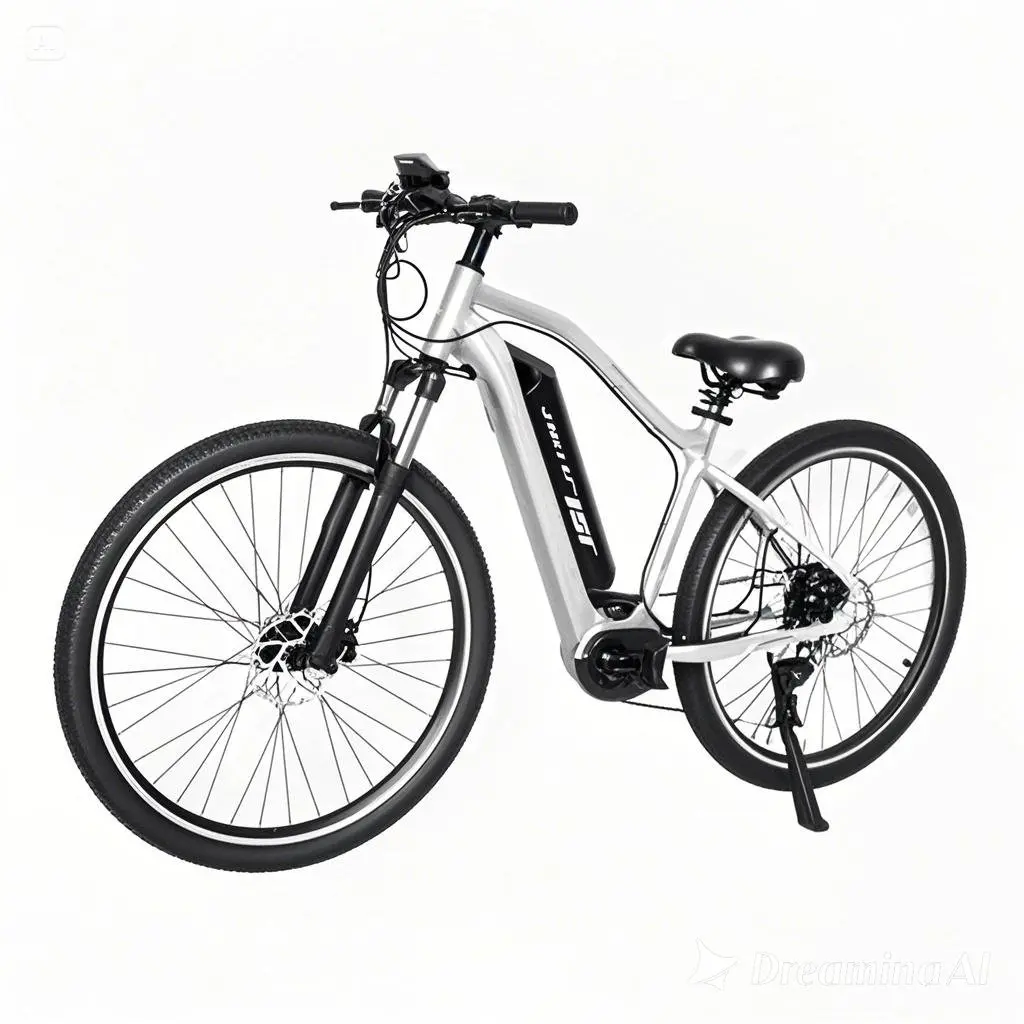

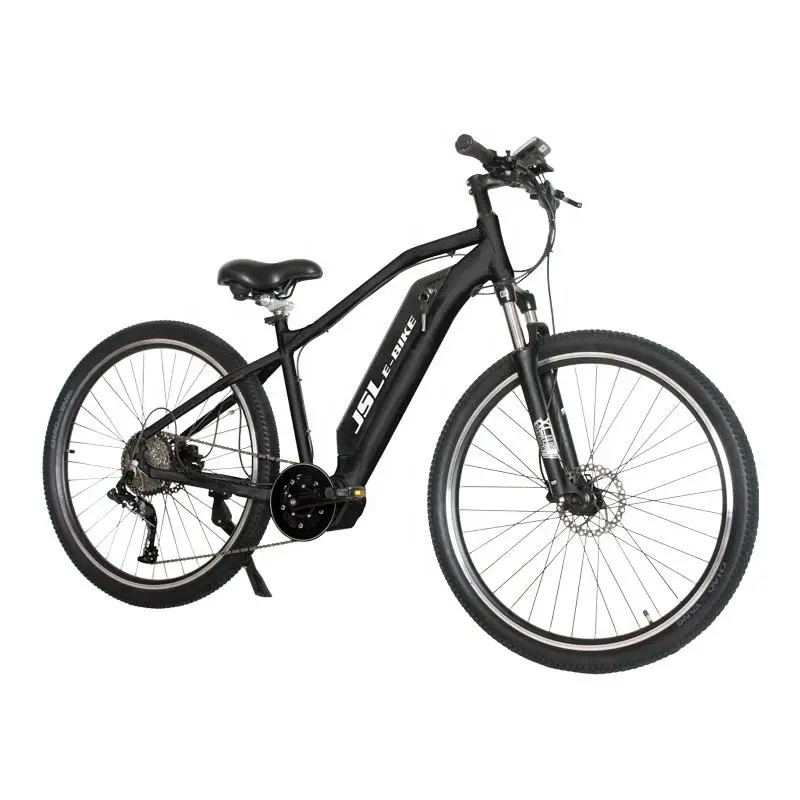

JSL037K 29” Alloy Electric Mountain Bike
Powerful, customizable electric mountain bike for off-road and urban needs.
Key Features：
250W Mid Motor
36V13Ah Lithium Battery
29” Alloy Frame + Suspension Fork
Shimano 11-Speed Gear System
Front & Rear Disc Brakes
Max Speed: 25km/h
Why Choose Us
Full In-House Manufacturing: 70,000㎡ factory integrating frame welding, painting, and full bike assembly for strict quality control and faster lead times.
Certified for Global Markets: CE, EN15194, ISO, TÜV certified — fully compliant for Europe and beyond.
25+ Years of Export Experience: Trusted by B2B partners across Europe, North America, and Australia.
Flexible Customization: Tailor frame colors, logos, battery & motor specs, accessories to match your market needs
Product Description
Shimano Derailleur
Smooth and reliable 11-speed shifting for precise control across all terrains.
Mid Drive Crankset
Efficient center-mounted motor delivers balanced torque and superior climbing ability.

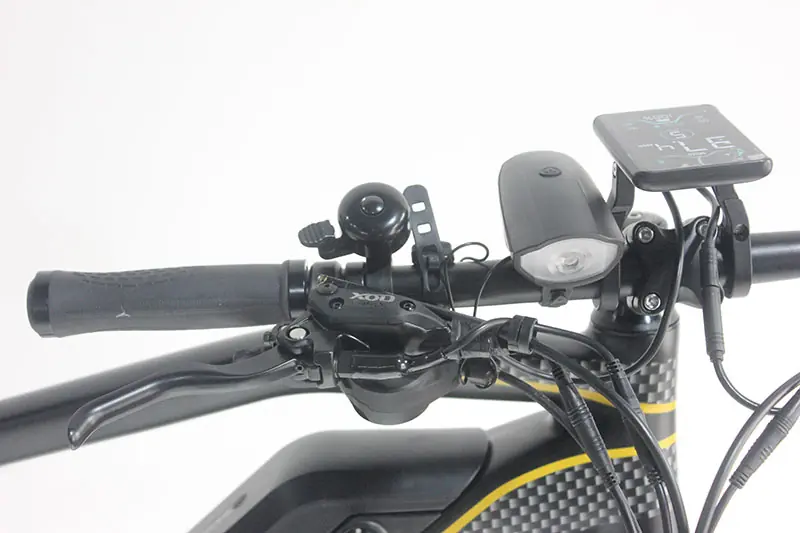

Handlebar Integration
Clean cockpit design with integrated display and streamlined cabling for a premium look.

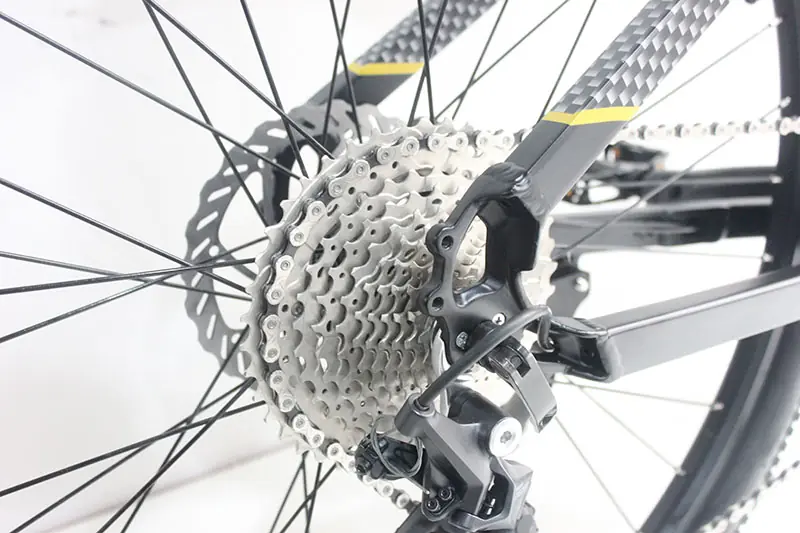

Rear Cassette
Robust multi-tooth design ensures durable power transfer and extended drivetrain life.
Removable Lithium Battery
36V 13Ah quick-release battery, easy to charge or swap, perfect for daily or rental fleets.

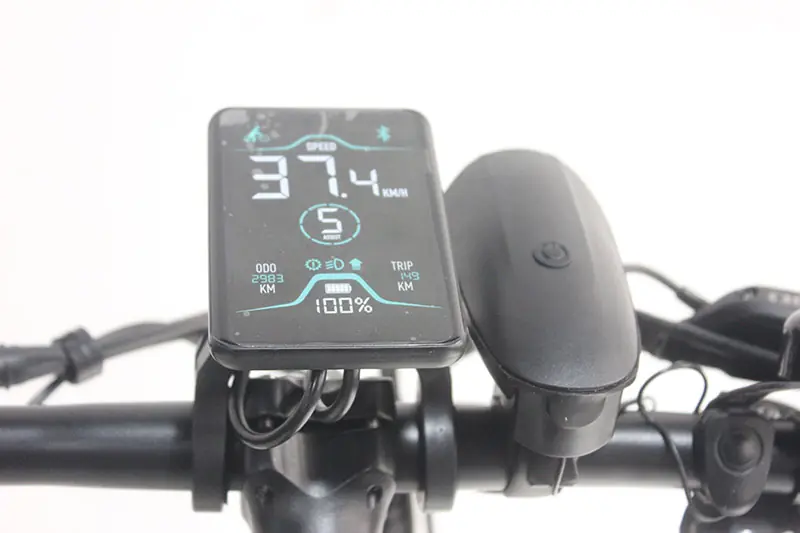

LCD Display & Controls
Clear multi-function screen with adjustable PAS levels, speed, and distance tracking.

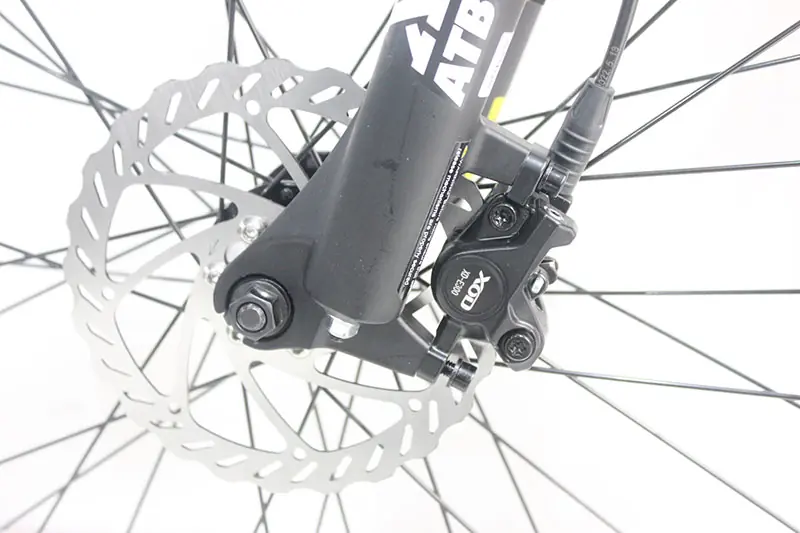

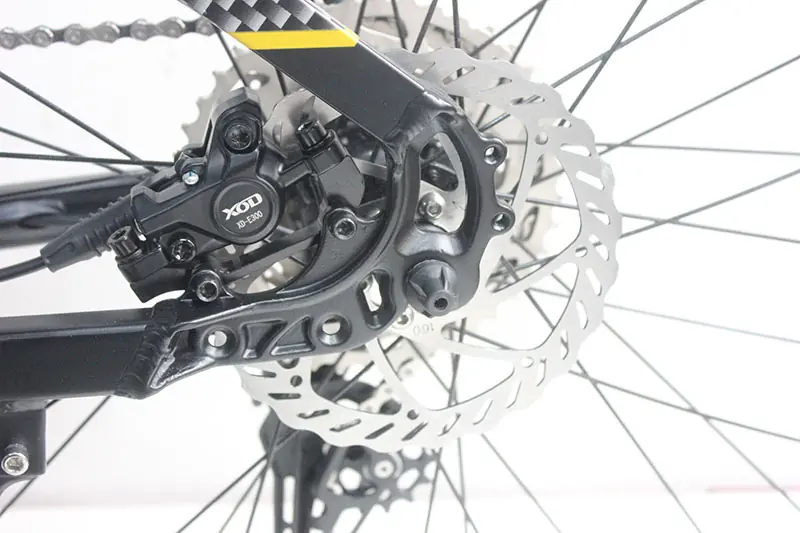

Rear Disc Brake
Powerful braking performance for safe stopping on wet, muddy, or uneven roads.

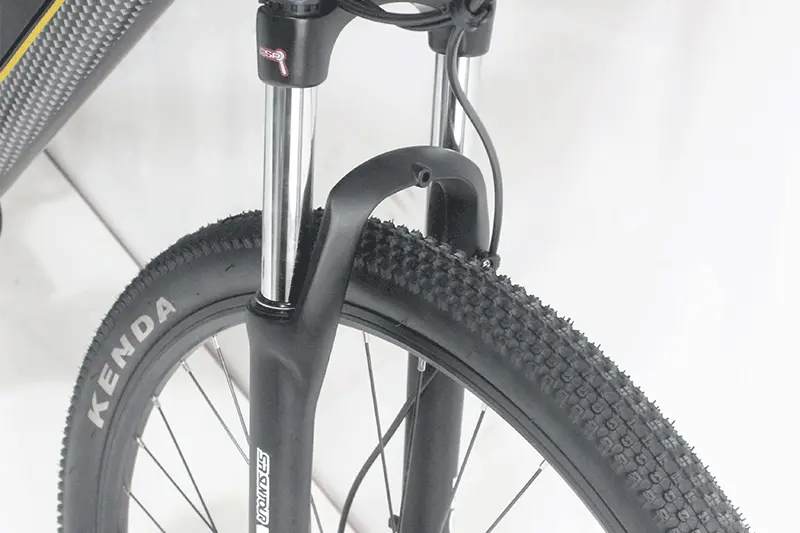

Suspension Fork & MTB Tires
29” x 2.1” mountain tires with alloy suspension fork for excellent grip and shock absorption.
Rear Reflector Light
Increases visibility and safety for night rides; supports upgrades to powered tail lights.
Product Parameters
Frame
29“ Al Alloy
Motor
250W Mid Motor
Battery
36V13Ah Lithium Battery Chinese Cells
Throttle
Optional Thumb/Full-twist/Half-twist Throttle
Display
5/9PAS LCD Display
Light
No Lights
Tires
29“*2.1 MTB Tires
Rims
Al Alloy Double Wall Rims
Front Fork
Al Alloy with Suspension
Brake
Front/Rear Disk Brake
Speed Gears
Shimano 11 Gears
Rack/Mudguard
No Rack/No Mudguard
Max Speed
25km/h
N.W./G.W.
28kg/33kg
FAQ
Q1: What is the typical range on a full charge?
A: Equipped with a 36V 13Ah lithium battery, the average range is 50–70 km per charge, depending on terrain and PAS level.
Q2: Can I customize the motor power or battery size?
A: Yes, we support OEM customization including mid-drive or hub motors (250W–1000W) and battery capacities from 10Ah to 20Ah.
Q3: Is this bike suitable for steep or off-road conditions?
A: Absolutely. The mid-drive motor combined with the 11-speed Shimano system and suspension fork makes it ideal for hills and rough trails.
Q4: What certifications do your bikes have?
A: Our bikes meet CE and EN15194 standards for the EU market, and can be adjusted to comply with UL or other regional requirements.
Q5: How is the bike packaged for shipping?
A: Each bike is packed in a reinforced carton (approx. 1502694cm), net weight 28kg, gross 33kg, optimized for container loading.
Q6: What is your typical lead time for bulk orders?
A: Generally 25–35 days after confirming the order and receiving the deposit. Exact time depends on customization requirements and order quantity.
Q7: What is your MOQ for OEM branding?
A: For custom logo, color, and packaging, our standard MOQ is 20 units. We also support sample orders to test quality.
Q8: Can you provide spare parts or after-sales support?
A: Yes, we offer a full range of spare parts and technical support. Standard spare kits are available with bulk shipments.
Q9: Do you offer warranty?
A: Our eBikes come with a 12-month warranty covering motor, battery, and controller, plus lifetime technical support.
Q10: Can you help design my private label packaging?
A: Absolutely. We provide packaging design assistance, including custom cartons, manuals, and stickers to match your brand.
